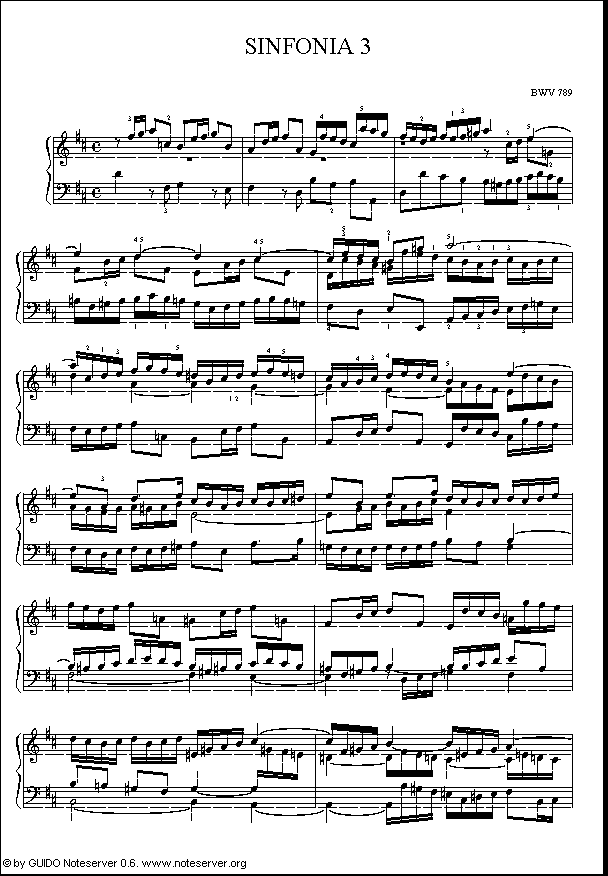

% The first page of a BACH Sinfonia, BWV 789
% Most of the element-positions are specified
% using Advanced GUIDO tags. The layout has
% been very closely copied from the URTEXT
% edition by the Henle-Verlag.
% This example has been prepared to show, that
% Advanced GUIDO is capable of exact score-
% formatting.
%
% Some of used representations are not
% yet perfect: especially the broken ties at the
% end of systems need to be specified in a
% different way. The GUIDO team is working on
% these issues.
{ [ % general stuff
\pageFormat<"a4",lm=0.8cm,tm=4.75cm,bm=0.9cm,rm=1.1cm>
\title<"SINFONIA 3",pageformat="42",textformat="lc",dx=-2cm,dy=0.5cm>
\composer<"BWV 789",dy=1.35cm,fsize=10pt>
% this turns automatic breaking of systems and pages off.
\autoBreak<system="off",page="off">
% indent of 1.05 cm for the first system.
\systemFormat<dx=1.05cm>
% voice 1
\staff<1,dy=0.85cm> % next staff is 0.85 cm below
\staffFormat<style="5-line",size=0.9375mm>
% barlines go through whole system
\barFormat<style="system">
% measure 1 (voice 1)
\clef<"treble"> \key<"D"> \meter<"C"> \stemsUp
\restFormat<posy=-1hs> _/8 \beam( \fingering<text="3",
dy=8hs,dx=-0.1hs,fsize=7pt>(f#2/16) g)
\beam( \stemsUp<5hs> a/8
\fingering<text="2",dx=1hs,dy=11.5hs,fsize=7pt>( \stemsUp<8hs> c )
)
\beam( \stemsUp h1 e2/16 f#)
\beam( \stemsUp<5hs> g/8 \stemsUp<8.5hs> h1 \stemsUp) \bar
% measure 2 (voice 1)
\beam( a1/8 d2/16 e) \beam( f#/8 a1)
\beam( \stemsUp<12hs> g/16
\stemsUp \fingering<text="4",fsize=7pt,dy=9hs,dx=-0.2hs>(f#2) e
\stemsUp<8hs> d \stemsUp)
\beam( \stemsUp<12hs> c# \stemsUp
\fingering<text="5",fsize=7pt,dy=9hs>(h) a
\stemsUp<8hs> g \stemsUp ) \bar
% measure 3 (voice 1)
\beam( \stemsUp<5.5hs> f#2/16 \stemsUp e
\fingering<text="2",fsize=7pt,dy=10hs>( d ) \stemsUp<5.5hs> e \stemsUp)
\beam( \stemsUp<6hs> f# \stemsUp
\fingering<text="1",fsize=7pt,dy=11hs>(e)
\fingering<text="3",fsize=7pt,dy=11hs>(f#)
\stemsUp<6.5hs> g# \stemsUp)
\stemsUp<4.75hs> a/4 \stemsUp
\tieBegin<dx1=2hs,dy1=3hs,dx2=0hs,dy2=2hs,h=2hs>
\fingering<text="5",fsize=7pt,dy=6hs>( \stemsUp<4.5hs> e/4 )
empty*0/4 \tieEnd
\bar
\newSystem<dy=4cm>
% measure 4 (voice 1)
\staff<1,dy=0.98cm>
\tieBegin<dx1=-2hs,dy1=1.5hs,dx2=-0.5hs,dy2=2.5hs,h=0.75hs> empty*0/4
\space<2hs>
e/4 \tieEnd
\tie<dy1=2.4hs,dx2=-1hs,dy2=2.4hs,h=1.75hs>(
\fingering<text="4 5",dy=8hs,fsize=7pt>( \stemsUp<5hs> d) d )
\tieBegin<dy1=2hs,dy2=2hs,dx2=0hs>
\fingering<text="4 5",dy=8hs,fsize=7pt>(c#)
%measure 5 (voice 1)
\bm( \stemsUp<8hs> c#/16 \stemsUp
\tieEnd \fingering<text="5",dy=11hs,fsize=7pt>(e) d
\stemsUp<7.5hs> c# \stemsUp )
\bm( \fingering<text="2",dy=12.5hs,fsize=7pt>(
\stemsUp<8hs> h1/8 ) \acc( \stemsUp<5hs> g#2 \stemsUp))
\tieBegin<dy2=2hs,dx2=0hs>
\fingering<text="5",dy=5hs,fsize=7pt>( \stemsUp<4hs> a/2)
empty*0/4 \tieEnd
\newSystem<dy=4.15cm>
% measure 6 (voice 1)
\staff<1,dy=1.08cm>
\tieBegin<dx1=-2hs,dy1=4hs,dx2=0hs,dy2=2hs,h=0.75hs>
empty*0/4 \space<2hs> \bm( \stemsUp<5.5hs> a/16 \stemsUp
\tieEnd \fingering<text="2",dy=13hs,fsize=7pt>( c# )
\fingering<text="1",dy=11.25hs,fsize=7pt>(d)
\stemsUp<6hs> \fingering<text="3",dy=9.5hs,fsize=7pt>(e)
\stemsUp)
\bm( \stemsUp<7hs> f# \stemsUp g f# \stemsUp<7.5hs>
\fingering<text="5",dy=11hs,fsize=7pt>(e) \stemsUp )
\bm( \stemsUp<6hs> d# \stemsUp h1 c#2 \stemsUp<6hs> d# \stemsUp )
\bm( \stemsUp<7hs> e \stemsUp \fingering<text="4",dy=9hs,fsize=7pt>(f#)
\fingering<text="5",dy=9.5hs,fsize=7pt>(e) \stemsUp<7.5hs> d \stemsUp )
% measure 7 (voice 1)
\bm( \stemsUp<6hs> c# \stemsUp a1
\fingering<text="4",dy=10hs,fsize=7pt>(h)
\stemsUp<6hs> \fingering<text="3",dy=9.25hs,fsize=7pt>(c#2)
\stemsUp)
\bm( \stemsUp<7hs>
\fingering<text="4",fsize=7pt,dy=9.25hs>(d)
\stemsUp e d \stemsUp<7hs> c# \stemsUp )
\stemsUp<5.5hs> \fingering<text="5",fsize=7pt,dy=8hs>(h1/4)
\tieBegin<dy1=2.5hs,dx2=0,dy2=1.5hs,h=1.25hs> \stemsUp<4.5hs> e2
empty*0/4 \tieEnd
\newSystem<dy=4.25cm>
% measure 8 (voice 1)
\staff<1,dy=1.02cm>
\tieBegin<dx1=-2hs,dy1=1.5hs,dx2=-0.5hs,dy2=2.5hs,h=0.75hs>
empty*0/4 \space<2hs>
\bm( e/8 \tieEnd \stemsUp<6.5hs>
\fingering<text="3",fsize=7pt,dy=12hs>(a1) \stemsUp)
\dotFormat<dy=1hs>
\bm( d2/8. e/16)
\bm(c# h1 a h )
\bm( c#2 h1 c#2 d# )
% measure 9 (voice 1)
\bm( e/8 h1)
\dotFormat<dy=0>
\bm(e2/8. f#/16)
\bm(d c# h1 c#2)
\bm(d c# d e)
\newSystem<dy=3.9cm>
% measure 10 (voice 1)
\staff<1,dy=1.48cm>
\bm( \stemsDown f# e d e)
\bm(f#/8 \acc(a1))
\bm(g# c#2/16 d)
\bm(e/8 \acc(g1))
% measure 11 (voice 1)
\bm( \stemsUp f# h/16 c#2)
\bm(d/8 f#1)
\bm( \stemsUp<13hs> e/16 \stemsUp d2 c#
\stemsUp<9hs> h1 \stemsUp )
\bm( \stemsDown<5.5hs> a# \stemsDown g2 f#
\stemsDown<8.5hs> e \stemsDown)
\newSystem<dy=4.45cm>
% measure 12 (voice 1)
\staff<1,dy=1.09cm>
empty*0/4 \space<2hs>
\bm(d/16 c# h1 c#2 )
\bm(d h1 c#2 d)
\bm( \stemsUp<9.5hs> e#1 \stemsUp g# a
\stemsUp<6hs> h \stemsUp )
\tieBegin<dy1=3.2hs,dx2=0,dy2=3.2hs> c#2/4
% measure 13 (voice 1)
\bm(c#/16 \tieEnd f#1 g# a)
\tieBegin h/4
\bm( h/16 \tieEnd e# f# g#)
\tieBegin<dx1=2hs,dy1=2.8hs,dx2=0hs,dy2=-2.1hs,h=1.1hs>
a/4 empty*0/4 \tieEnd \newPage
% measure 14 (voice 1)
\tieBegin empty*0/4 a/16 \tieEnd
] ,
[ % voice 2
\staff<1>
% measure 1 (voice 2)
\restFormat<posy=-8hs,dx=2.5cm> _/1
% measure 2 (voice 2)
_/1
% measure 3 (voice 2)
\restFormat<posy=-2hs> _/2 \restFormat<posy=-5hs> _/8
\stemsDown \beam( \fingering<text="2",fsize=7pt,dy=6hs>(c#2/16)
\stemsDown<7.5hs> d \stemsDown )
\beam( \stemsDown<8hs> e/8 \stemsDown
\stemsDown<5hs> \acc<dx=0.02cm>(
\fingering<"2",fsize=7pt,dy=-3hs,dx=0.8hs>( g1 ) )
\stemsDown )
% measure 4 (voice 2)
\bm( \stemsDown<4.5hs> f#1/8 \stemsDown
\fingering<text="2",fsize=7pt,dy=-6.5hs>(h/16)
\stemsDown<6hs> c#2 \stemsDown)
\bm( \stemsDown<7hs> d/8 \stemsDown<4.25hs> f#1 \stemsDown )
\bm( \stemsDown<5hs> e \stemsDown a/16 \stemsDown<7hs> h \stemsDown)
\bm( \stemsDown<7hs> c#2/8 \stemsDown<4.5hs> e1 \stemsDown )
% measure 5 (voice 2)
\bm( \stemsDown<5hs> d/16 \stemsDown
\fingering<text="3",fsize=7pt,dy=11hs>(c#2) h1
\stemsDown<7hs> a \stemsDown )
\bm( \stemsDown<6hs>
\fingering<text="1",fsize=7pt,dy=12.25hs>( g# )
\stemsDown f#2 e \stemsDown<8.5hs>
\fingering<text="1",dy=5hs,fsize=7pt>(d)
\stemsDown)
\bm( \stemsDown<8hs> c# \stemsDown
\fingering<text="1",fsize=7pt,dy=7hs>(h1)
\fingering<text="2",fsize=7pt,dy=8hs>( a )
\fingering<text="1",fsize=7pt,dy=7hs>(
\stemsDown<7.5hs> h \stemsDown) )
\bm( \stemsDown<9hs> \fingering<text="3",dy=6hs,fsize=7pt>( c#2 )
\stemsDown a1 h \stemsDown<8.75hs> c#2 \stemsDown )
% measure 6 (voice 2)
d2/4 \tieBegin<dx1=0,dy1=-3.25hs,dx2=-2hs,dy2=-3.25hs,h=-1hs> a1
\fingering<text="1 2",fsize=7pt,dx=1.3cm,dy=-4hs>(a) \tieEnd
\tieBegin<dx1=0,dy1=-2.25hs,dx2=-2hs,dy2=-2.25hs,h=-1hs> g
% measure 7 (voice 2)
g \tieEnd \tieBegin<dx1=-0.5hs,dy1=-2hs,dx2=-2hs,dy2=-2hs,h=-1hs> f#
\bm( f#/16 \tieEnd a g f# )
\bm( e d2 c# h1 )
% measure 8 (voice 2)
\bm( a1/16 g f# g)
\bm( a g# a h )
\tieBegin<dx1=0.25hs,dy1=-1.5hs,dx2=-2hs,dy2=-1.5hs,h=-2hs> e1/2
% measure 9 (voice 2)
\bm( e/8 \tieEnd g/16 a)
\bm( h a h c#2)
f#1/4 \staff<2>
\tieBegin<dx1=2hs,dy1=3hs,dx2=0hs,dy2=4hs,h=1.2hs> \stemsUp h0
empty*0/4 \tieEnd \bar \newSystem<3.9cm>
% measure 10 (voice 2)
\tieBegin<dx1=-2hs,dy1=3hs,dx2=-0.5hs,dy2=2hs,h=1hs>
empty*0/4 \space<2hs>\bm( h/16 \tieEnd a# h c#1)
\bm(d e d c#)
\bm(h0 g# \acc(a#) h)
\bm(c#1 d c# h0)
% measure 11 (voice 2)
\bm( a# f# g# a#)
\tieBegin h/4
\bm(h/16 \tieEnd h c#1 d)
\bm(e/8 a#0)
% measure 12 (voice 2)
\bm( h \acc(a) )
\bm(g# f#)
\tieBegin g#/4
\bm(g#/16 \tieEnd \staff<1> \stemsDown
\acc(g#1/16) f# \acc(e) )
% measure 13 (voice 2)
\tieBegin<dx1=0.5hs,dy1=-1.9hs,dx2=-2hs,dy2=-1.9hs,h=-1hs> d#/4
\bm(d#/16 \tieEnd f# e d)
\tieBegin<dx1=0hs,dy1=-1.9hs,dx2=-2hs,dy2=-1.9hs,h=-1hs> c#/4
\bm(c#/16 \tieEnd \acc(e) \acc(d) c#)
],
[ % voice 3
\staff<2>
\staffFormat<"5-line",size=0.9375mm>
% measure 1 (voice 3)
\clef<"bass"> \key<"D"> \meter<"C">
d1/4 \restFormat<posy=-3hs> _/8 \stemsDown
\fingering<text="3",dy=-7hs,fsize=7pt>( f#0 ) g/4 _/8 e
% measure 2 (voice 3)
f#/4 _/8 d \beam( h \fingering<text="2",fsize=7pt,dy=-8hs>(g))
\beam(a a-1)
% measure 3 (voice 3)
\bm( \stemsDown<7hs>d0 \stemsDown d1 c#
\fingering<text="1",fsize=7pt,dy=-10hs>(
\stemsDown<9hs> h0 \stemsDown ) )
\beam( \stemsDown<8.25hs> a/16 \stemsDown g# a
\stemsDown<9.25hs> h \stemsDown )
\bm( \fingering<text="3",fsize=7pt,dy=-10hs>(
\stemsDown<8hs> c#1 \stemsDown )
d c#
\fingering<text="1",fsize=7pt,dy=-9hs>(
\stemsDown<7hs> h0 \stemsDown ))
% measure 4 (voice 3)
\bm( \stemsDown<8.25hs> a# \stemsDown f# g#
\stemsDown<8.25hs> a# \stemsDown)
\bm( \stemsDown<7hs> \fingering<text="1",fsize=7pt,dy=-9hs>( h )
\stemsDown c#1 \fingering<text="1",fsize=7pt,dy=-9hs>( h0 )
\stemsDown<6.25hs> \acc(a) \stemsDown )
\bm( \stemsDown<9hs> g# \stemsDown e f#
\stemsDown<9hs> g# \stemsDown )
\bm( \stemsDown<8hs> a \stemsDown h a
\stemsDown<7.25hs> g \stemsDown )
% measure 5 (voice 3)
\bm( \stemsDown<7hs>
\fingering<text="4",fsize=7pt,dy=-7hs>(f#/8 )
\stemsDown<6.25hs> d \stemsDown)
\bm( \stemsUp<6hs>
\fingering<text="1",fsize=7pt,dy=-5hs>(e)
\stemsUp<11hs> e-1)
\bm( \stemsUp<8.75hs>
\fingering<text="2",fsize=7pt,dy=-1hs>(a/16) \stemsUp h
\fingering<text="3",fsize=7pt,dy=-3hs>(c#0 ) \stemsUp<6hs> d \stemsUp )
\bm( \stemsDown<7hs> e \stemsDown
\fingering<text="3",fsize=7pt,dy=-7.5hs>(f#) \acc(g)
\stemsDown<7hs> e \stemsDown )
% measure 6 (voice 3)
\bm(f# e f# g)
\bm(a/8 \acc(c))
\bm(h-1 e0/16 f#)
\bm(g/8 h-1)
% measure 7 (voice 3)
\bm( \stemsUp a d0/16 e)
\bm(f#/8 a-1)
\bm( \stemsUp<12hs> g/16 \stemsUp f#0 e \stemsUp<8hs> d )
\bm( \stemsDown c# h a g)
% measure 8 (voice 3)
\bm(f# e d e)
\bm(f# e f# g#)
\bm(a/8 e)
\dotFormat<dy=1hs>
\bm(a. h/16)
% measure 9 (voice 3)
\bm( \acc(g) f# e f#)
\bm( g f# g a)
\bm( h/8 a)
g/4
% measure 10 (voice 3)
\tie<dx1=0.25hs,dy1=-1.5hs,dx2=-2hs,dy2=-1.5hs,h=-2hs>( f#/2 f#/4 )
\tieBegin<dx1=0,dy1=-1.25hs,dx2=-2hs,dy2=-1.25hs,h=-1.5hs> e
% measure 11 (voice 3)
e \tieEnd
\restFormat<posy=-0.8hs>
_/16 \bm(d e f#)
\acc( g/4 ) f#
% measure 12 (voice 3)
\tie<dx1=0,dy1=-2.2hs,dx2=-2hs,dy2=-2.2hs,h=-2hs>( h-1/2 h/4)
\tieBegin<dx1=0.2hs,dy1=-1.9hs,dx2=-2hs,dy2=-1.9hs,h=-2hs> a/4
% measure 13 (voice 3)
a/4 \bm( a/16 \tieEnd a0 g# f#)
\bm(e# c# d# e#)
\bm(f#/8 h-1/16 c#0)
% measure 14 (voice 3)
] }
